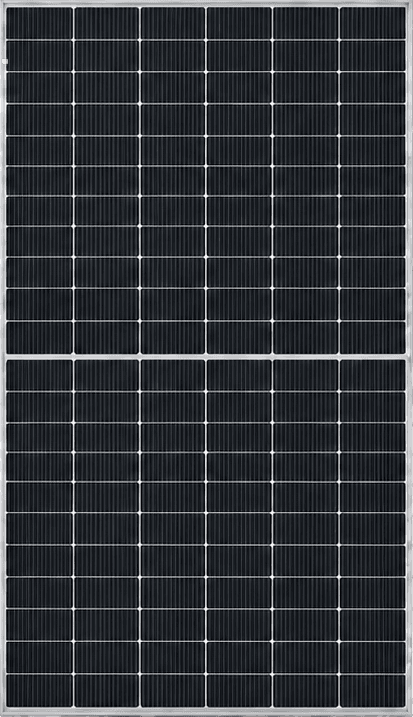

BIFACIAL N-TOPCon G12R

Next generation bifacial modules with N-TOPCon technology for maximum energy yield, reliability and long-term performance.

610 - 635 Wp

610 - 635 Wp

Download Datasheet

610 - 635 Wp

Max Power

Upto 23.51%

Efficiency

80% ± 5%

Bifaciality

0.40%

Yearly Degradation

N-Type TOPCon

Bifacial, Dual Glass

132 half-cut cells

Low LID Degradation

PID Resistance

High Reliability Performance

Key Evaluation

610 - 635 Wp

Max Power

Upto 23.51%

Efficiency

80% ± 5%

Bifaciality

0.40%

Yearly Degradation

Core Features (6 on 6)

Higher Power Lower LCOE

Low light & part shading power

Better Temperature Coefficient

Excellent Low-Light Performance

Positive tolerance 0~+5W

Extended Wind & Snow Load

Specification Table

Electrical

Mechanical

Temperature

Packing

Max power (Pmax)

610 – 635 Wp

Max power voltage (Vmp)

40.36 – 41.35 V

Max power current (Imp)

15.12 – 15.37 A

Open circuit voltage (Voc)

47.06 – 48.01 V

Short circuit current (Isc)

15.83 – 16.08 A

Power tolerance (Pmax)

0 ~ +5 W

Module efficiency

22.58% – 23.51%

Operating temperature

-40°C ~ +85°C

Maximum system voltage

1500 V DC (IEC & UL)

Maximum series fuse rating

30 A

Fill factor

81.92% – 82.32%

Cell type

N-Type TOPCon, 132 Half-Cut Cells (16 BB, 105 × 182.3 mm)

Specification Table

Electrical

Mechanical

Temperature

Packing

Max power (Pmax)

610 – 635 Wp

Max power voltage (Vmp)

40.36 – 41.35 V

Max power current (Imp)

15.12 – 15.37 A

Open circuit voltage (Voc)

47.06 – 48.01 V

Short circuit current (Isc)

15.83 – 16.08 A

Power tolerance (Pmax)

0 ~ +5 W

Module efficiency

22.58% – 23.51%

Operating temperature

-40°C ~ +85°C

Maximum system voltage

1500 V DC (IEC & UL)

Maximum series fuse rating

30 A

Fill factor

81.92% – 82.32%

Cell type

N-Type TOPCon, 132 Half-Cut Cells (16 BB, 105 × 182.3 mm)

Specification Table

Electrical

Mechanical

Temperature

Packing

Max power (Pmax)

610 – 635 Wp

Max power voltage (Vmp)

40.36 – 41.35 V

Max power current (Imp)

15.12 – 15.37 A

Open circuit voltage (Voc)

47.06 – 48.01 V

Short circuit current (Isc)

15.83 – 16.08 A

Power tolerance (Pmax)

0 ~ +5 W

Module efficiency

22.58% – 23.51%

Operating temperature

-40°C ~ +85°C

Maximum system voltage

1500 V DC (IEC & UL)

Maximum series fuse rating

30 A

Fill factor

81.92% – 82.32%

Cell type

N-Type TOPCon, 132 Half-Cut Cells (16 BB, 105 × 182.3 mm)

Warranty

12 Year Product Warranty

30 Year Performance Warranty

30 Year Performance Warranty

30 Year Performance Warranty

<1.0% Degradation in First Year

<1.0% Degradation in First Year

<1.0% Degradation in First Year

<0.40% / Year Degradation in Years 2–30

<0.40% / Year Degradation in Years 2–30

<0.40% / Year Degradation in Years 2–30

Standards and Compliance

CERTIFICATIONS

CERTIFICATIONS

BIS Approved
upto 650 W

IS 14286 (PART 1/SEC 1): 2023
IEC 61215-1-1: 2021
IS/IEC 61730-1: 2023
IS/IEC 61730-2: 2023

BIS Approved
upto 650 W

IS 14286 (PART 1/SEC 1): 2023
IEC 61215-1-1: 2021
IS/IEC 61730-1: 2023
IS/IEC 61730-2: 2023

BIS Approved
upto 650 W

IS 14286 (PART 1/SEC 1): 2023
IEC 61215-1-1: 2021
IS/IEC 61730-1: 2023
IS/IEC 61730-2: 2023
